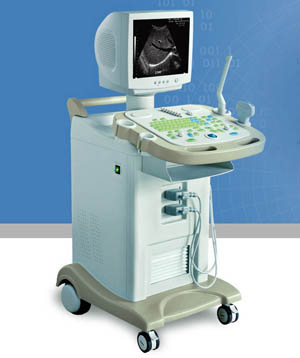

Product Code: SYH-G1, Ultrasonic Diagnostic Equipment
Feature:
14 inch SVGA high resolution non-interlaced monitor
Multi-frequency probes
Real-time zooming
192-frame Cineloop
8 images permanent storage
USB port
Multi-segment TGC adjustment
Specification:
| Image mode | B, B/B, 4B, B/M, M |
| Scanning mode | Convex and linear array |
| Multi-frequency probe | 2.5~8.5 MHz |
| Image magnification | ×0.8, ×0.9, ×1.0, ×1.1,×1.2, ×1.3, ×1.4 ×1.5 |
| Electronic focus | Acoustic lens focus, single focus and multiple focus |
| Max display depth | 220mm |
| Depth enhancement | Yes |
| Local zoom | Yes |
| Frame correlation function | Yes |
| Adjustment total gain | Yes |
| dynamic range | Yes |
| Gray Scale | 256 |
| Display | 14 inch SVGA high resolution non-interlaced monitor |
| Gain Control | 8-segment STC segmentation control, full gain control |
| Gains | 0~99 dB digital adjustable |
| Probe connectors | 2 (standard) |
| Storage | 8 images permanent image storage |
| USB port | for image transferring to PC |
| Scanning frequency | 2.5~8.5 MHz (depends on probes) |
| Image reverse | Left/right, up/down, positive/negative |
| Comment | Time, date, week, patient ID, age, sex, transducer type, transducer frequency, gray scale, focus, Hospital, Name, display mode, body mark |
| Body marks | 35 |
| Power supply | AC 110V 60HZ, AC 220V 50Hz |
