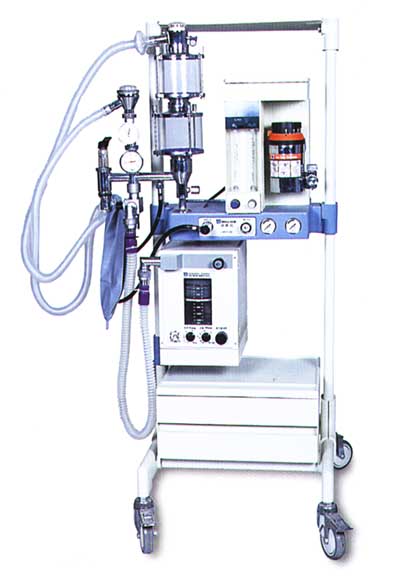

Product Code: SYK-3B2 anaesthesia machine
SYK-3B2 multifunction anaesthesia machine,developed with reliabilit,safety,practicability,combination in mind,is a kind of up to date economic anaesthesia machine with modular system.Standard parts of SYK-3B2 include anaesthesia ventilator SYK-3B2,a compact vaporizer and airway gauge.It is possible to be furnished with other types of vaporizers and electronic monitorings to make an ideal multifunction anaesthesia machines for modern hospital.
Feathers:
1.ISOcircuit system adaptable to various monitoring
2.New type of flowmeter ORC system (O2concentration no less than 25%),N2O cut off safety unit.
3.Conpact Enflurane Vaporizer:Vaporized drug comcentration adjustable
4.The SC-M3A pneumatic anaesthesia ventilator was comparable small consumption of gas(one cylinder of Oxygen for six hours of operation),and precise parameters for control
Airway pressure gauge for real-time display of respiration of patient
Technical Data:
1.Flow control range:O2 （0.1～10L/min）
N2O（0.1～10L/min）
2.Gas Supply:0.27～0.55MPa
3.O2Flush:35～70L/min
4.N2O automatic cut-off:active when O2 pressure lower than 0.1MPa
5.Non-compensation Vaporizer(Enflurane)
Cncentration adjustable(0～5%)
6.Anaesthesia Ventilator:
Control type:Pneumatically driven and
controlled,time cycle and volume constant
Gas supply:0.27～0.55Mpa
Frequency:6～40cycles/min
I:E ratio:1:2（Fixes）
Tidal volume: Adule bellow 150～1600ml
Children bellow 50～150ml
Safety Valve Working Pressue:6kPa
