Ultrasound Gel
 |
Product Code: SYH-Color, Hand-Carried Color Doppler
Digital Untrasound System |
 |

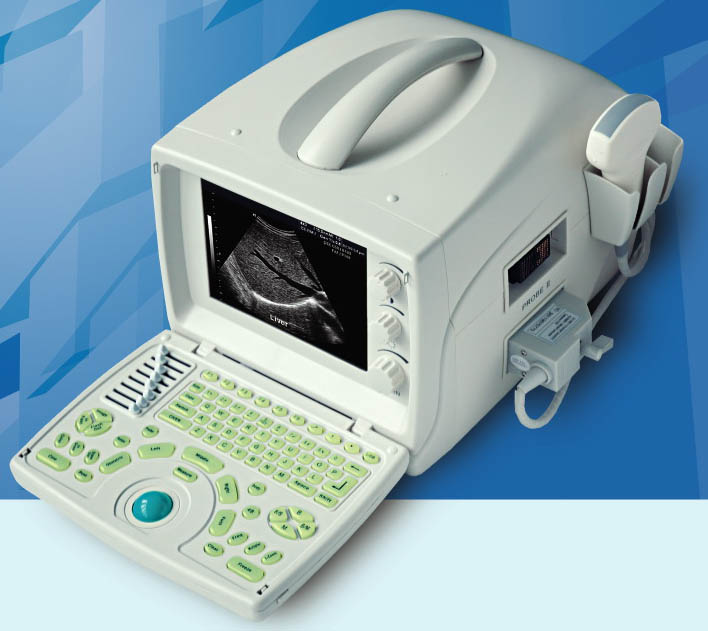

Product Code: SYH-D1
Ultrasound
|
Image mode |
B, B/B, B/M, M,4B |
|
Scanning mode |
Convex and linear array |
|
Multi-frequency probe |
2.5~8.5 MHz |
|
Image magnification |
ĄÁ1.0, ĄÁ1.2, ĄÁ1.5, ĄÁ2.0 |
|
Electronic focus |
Acoustic lens focus,
single focus and multiple focus |
|
Max display depth |
220mm |
|
Depth enhancement/pan
function |
Yes |
|
Local zoom |
Yes |
|
Frame correlation
function |
Yes |
|
Adjustment total gain and
dynamic range |
Yes |
|
Gray Scale |
256 |
|
Display |
10.4 inch SVGA high
resolution non-interlaced monitor |
|
Gains |
0~99 dB digital
adjustable |
|
Probe connectors |
2 (standard) |
|
Storage |
8 images permanent image
storage |
|
USB port |
for image transferring to
PC |
|
Scanning frequency |
2.5~8.5 MHz (depends on
probes) |
|
Image reverse |
Left/right, up/down,
positive/negative |
|
Comment |
Time, date, week, doctor
name, patient ID, age, sex, transducer type, transducer
frequency, gray scale, focus, average value |
|
Body marks |
35 |
|
Power supply |
AC 110V, 60Hz; AC220,50
Hz |
|
Power consumption |
ĄÜ100VA |
|
Dimensions |
490x380x420mm (LxHxM) |
|
Net weight |
approx. 9.5k, g |
|
 |
Product Code: SYH-D2
Ultrasound
Advantages
l
Embedded computer platform is adopted in
the ultrasonic master system
l
THI
l
DFC Dynamic frequency scanning
l Histogram, Sectionl drawing, Puncture
guide
l
Save hundreds of thousands of images and cine loop permanently
l
Dynamic real-time PIP local zoom functions
l
Double connectors
l
Double USB ports
l Multiple kinds of OB. measurement
reports, fetus physiological grades and reports and
fetus growth curve
l Auto-create report systems of Gyn.,
small organs, cardiac, urology and other sections
l Compatible of
jet printer, laser printer, video printer and video recorder |
 |

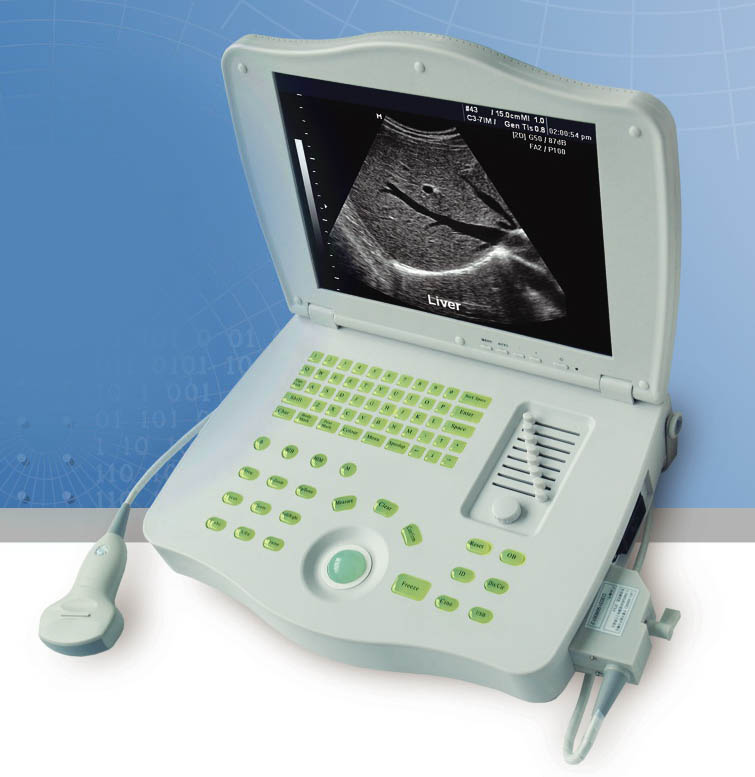

Product Code:
SYH-E1Ł¨FULL DIGITALŁŠ
Ultrasound
Applicable fields
Suitable for the diagnosis of Abdomen,
Heart, Gynecology, Obstetrics, Thyroid Gland, Small Parts and so
on.
Widely used for clinical examination and diagnosis. They are
ideal equipments to meet the needs of various kinds of hospitals
and clinics.
|
Dispaly
|
15 inches high-resolution LCD
|
|
Scanning Mode
|
Electronic convex array, Electronic linear array
|
|
Display Mode
|
B, B/B, B/M and M
|
|
Magnification
|
x0.8, x1.0, x1.2, x1.3, x1.5, x1.6, x1.8, x2.0
|
|
Gray Scale
|
256
|
|
Adjustment
|
A, B, C, D, E, F, G,H
|
|
Resolution
|
HorizontalĄÜ2mm, Vertical ĄÜ1mm
|
|
Geometrical Precision
|
ĄÜ5%
|
|
Blind Area
|
ĄÜ3mm
|
|
TGC
|
8-section TGC adjustment
|
|
Pseudo Colors
|
Yes
|
|
Display Depth
|
240mm and depth could be increased
|
|
Image Polarity
|
Left/right, positive/negative and up/down
|
|
Cineloop
|
Successive 256 frames
|
|
Output Interface
|
Three output interfaces: 1 VGA and 2 PAL video
signal output
|
|
Power Supply Range
|
AC 110V60Hz, 220V50Hz
|
|
 |
Product Code:
SYH-G1,
Ultrasonic Diagnostic Equipment
Feature:
14 inch SVGA high
resolution non-interlaced monitor
Multi-frequency
probes
Real-time zooming
192-frame Cineloop
8 images permanent
storage
USB port
Multi-segment TGC
adjustment
Specification:
ĄĄ
|
mode |
B,
B/B, 4B, B/M, M |
|
Scanning mode |
Convex and linear array |
|
Multi-frequency probe |
2.5~8.5 MHz |
|
magnification |
ĄÁ0.8,
ĄÁ0.9, ĄÁ1.0, ĄÁ1.1,ĄÁ1.2, ĄÁ1.3, ĄÁ1.4 ĄÁ1.5 |
|
Electronic focus |
Acoustic lens focus, single focus and multiple focus |
|
Max
display depth |
220mm
ĄĄ |
|
Depth
enhancement |
Yes |
|
Local
zoom |
Yes |
|
Frame
correlation function |
Yes |
|
Adjustment total gain |
Yes |
|
dynamic range |
Yes |
|
Gray
Scale |
256 |
|
Display |
14
inch SVGA high resolution non-interlaced monitor |
|
Gain
Control |
8-segment STC segmentation control,
full gain control |
|
Gains |
0~99
dB digital adjustable |
|
Probe
connectors |
2
(standard) |
|
Storage |
8
images permanent image storage |
|
USB
port |
for
image transferring to PC |
|
Scanning frequency |
2.5~8.5 MHz (depends on probes) |
|
reverse |
Left/right, up/down, positive/negative |
|
Comment |
Time,
date, week, patient ID, age, sex, transducer type,
transducer frequency, gray scale, focus, Hospital,
Name, display mode, body mark |
|
Body
marks |
35 |
|
Power
supply |
AC
110V 60HZ, AC 220V 50Hz |
ĄĄ |
 |

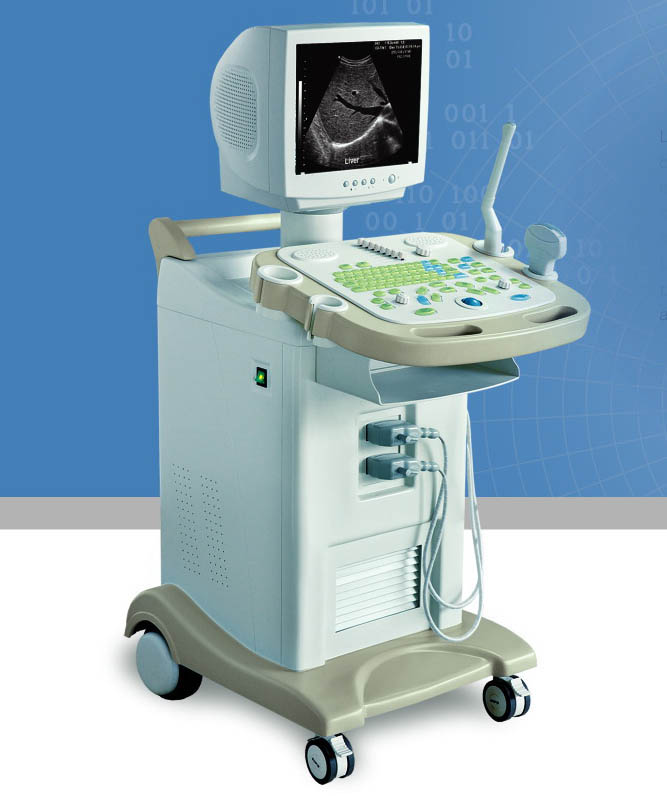

Product Code: SYH-H2
Leading Digital Technology
DBF:Digital Beam Former
RDF:Real-time Dynamic Filtering
DFS:Dynamic Frequency Scanning
RDA:Real-time Dynamic Aperture
ĄĄ
Features:
Trolley design
14 inch high-resolution monitor
8 TGC controls
High-quality images
Broadband multi-frequency probes
Cineloop
Permanent image storage
USB port
Technical
Specification:
|
Display
|
14 inch
high-resolution monitor
|
|
Scanning mode
|
Electronic linear
array, electronic convex linear
|
|
Display mode
|
B, B/B, B/M, M, 4B
|
|
Magnification
|
ĄÁ1.0, ĄÁ1.2, ĄÁ1.5,
ĄÁ2.0
|
|
Gray Scale
|
256 level
|
|
Displaying depth
|
240mm, and depth
could be increased and stepless magnified
|
|
Resolution
|
Horizontal:
ĄÜ2mm
Vertical: ĄÜ1mm
|
|
Geometrical precision
|
ĄÜ5%
|
|
Blind area
|
ĄÜ3mm
|
|
TGC
|
8-section TGC adjust
|
|
Image Polarity
|
left/right turn,
positive /negative turn and up / down turn
|
|
Cineloop
|
successive 256 frames
|
|
Output Interface
|
two output
interfaces, VGA and PAL video signal output
|
|
Power Supply Range
|
AC 110V
60Hz
AC 220V 50Hz
|
|
Focusing modes
|
dynamic-emitting
focus, dynamic-receiving focus, dynamic aperture,
adaptive acoustic lens
|
|
Output interface
|
AV, S-video, VGA
|
|
USB connector
|
Yes
|
|
 |
Product Code: SYH-D1V,
Veterinary
applicable to
abdominal, seminal and small organs examination for Bovine,
Equine, Ovine, Canine and Feline.
ĄĄ
Features:
10.4 inch SVGA
high resolution non-interlaced monitor
Multi-frequency
probes
Real-time
zooming
192-frame
Cineloop
8 images
permanent image storage
Two probe
connectors
VET software
Specification:
|
Image Mode
ĄĄ |
B,
B/B, B/M, M |
|
Scanning Mode |
Convex and linear array |
|
Multi-Frequency Probe |
2.5~8.5 MHz |
|
Magnification |
ĄÁ1.0,
ĄÁ1.2, ĄÁ1.5, ĄÁ2.0 |
|
Electronic Focus |
Acoustic lens focus, single focus and multiple focus |
|
Max
Display Depth |
220mm
ĄĄ |
|
Depth
Enhancement/Pan Function |
Yes |
|
Local
Zoom |
Yes |
|
Frame
Correlation Function |
Yes |
|
Adjustment Total Gain And Dynamic Range |
Yes |
|
Gray
Scale |
192 |
|
Display |
10.4
inch SVGA high resolution non-interlaced monitor |
|
Probe
Connectors |
2
(standard) |
|
Scanning Frequency |
2.5~8.5 MHz (depends on probes) |
|
Reverse |
Left/right, up/down, positive/negative |
|
Comment |
Time,
date, week, doctor name, patient ID, age, sex,
transducer type, transducer frequency, gray scale,
focus, average value |
|
Body
Marks |
5 |
|
Power
Supply |
AC 110V,60Hz; AC 220V,50Hz
ĄĄ |
|
Power
Consumption |
ĄÜ100VA |
|
Dimensions |
490x380x420mm
(L x H x M) |
|
Net
Weight |
approx.
9.5kg |
|
 |
Product Code: SYH-907
Ultrasound
Features:
• Full digital beam-forming technology;
• 8-Segment TGC adjustment;
• Display the puncture guide line;
• Automatic report generation(Normal/OB);
• 16 levels scanning depth adjustment;
• USB 2.0 for real-time picture uploading to PC;
• Keyboard with backlight;
• Display date, time, name, sex, age, doctor and hospital name
annotation;
• GAMA calibration, statistic histogram and edge gain image
processing. |
 |
Product Code: SYH-908
Ultrasound
Features:
• Full digital beam-forming technology;
• 8-Segment TGC adjustment;
• Display the puncture guide line;
• Automatic report generation(Normal/OB);
• 16 levels scanning depth adjustment;
• USB 2.0 for real-time picture uploading to PC;
• Keyboard with backlight;
• Display date, time, name, sex, age, doctor and hospital name
annotation;
• GAMA calibration, statistic histogram and edge gain image
processing. |
 |
Product Code: SYH-910
Ultrasound
Features:
• Full digital beam-forming technology;
• 8-Segment TGC adjustment;
• Gama calibration, histogram;
• Automatic report generation(Normal/OB);
• Scanning angle adjustment;
• 16 levels scanning depth adjustment;
• USB 2.0 for real-time picture uploading to PC;
• Biopsy guide available;
• Keyboard with backlight;
• Multi-frequency transducers for wide application. |
 |
Product Code: SYH-100
Ultrasound
Features:
• 10 inches high resolution monitor;
• Full digital beam-former technology ;
• THI-- Tissue Harmonic Imaging technique;
• 8-Segment TGC adjustment;
• USB 2.0 for Patient information storage;
• Image processing technology. |
 |
Product Code: SYH-200/300
Ultrasound
Features:
• Originate from the latest image processing techniques;
• Broadband and multi-frequency transducers;
• Abudant software packages of Abdomen, Obstetric, Gynecology,
Cardiology, Urology, Endocavity, Vascular, Prostate and Small
Parts;
• Built-in Patient information management system;
• More than 5000 frames permanent storage;
• Embedded 3D software as option. |
 |
 |
Product Code: SYH-210/220
Ultrasound
Features:
• 14 inches high resolution monitor;
• Originate from the latest image processing techniquesŁť
• Broadband and multi-frequency transducersŁť
• Abudant software packages of Abdomen, Obstetric, Gynecology,
Cardiology, Urology, Endocavity, Vascular, Prostate and Small
PartsŁť
• Built-in patient information management systemŁť
• More than 50000 frames permanent storageŁť
• Embedded 3D software as option;
• Dicom 3.0 is available;
• 14 inches TFT color monitor as option.
Powerful AnalysisŁş
• Automatic measurement software for obstetrics, gynecology,
organ, heart,
urology etc. Department.
• Measurement and calculation: distance, ellipse measure
circumference and
area, trace measure circumference and area, ellipse measure
surface area and
volume; 4 measuring results; Ratio measurement, line
narrow/width ratio, area
narrow/width ratio, angle measurement, automatic calculation.
• Automatic report producing system.
ĄĄ |
 |
|
