Suction Machine

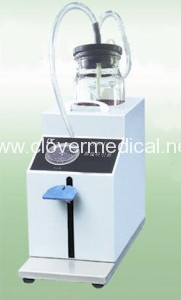

23dii Product Code:  23DII ELECTRICAL SUCTION APPARATUS

23DII electrical suction apparatus is a fresh style portable suction unit for clinical use. It is fit for suctioning pus, blood, sputum and other thick liquid in human body. It adopts double piston oil-free lubricating vacuum pump, preventing the contamination of oil mist. The pump requires no daily maintenance and servicing. The overflow protection device from the machine can prevent liquid from flowing to the pump. Hand-operated switch and footstep-operated switch are connected in parallel to option. The complete machine operates stably and produces a minimal level of sound. It is easily controlled and is reliable and safe in use.

Negative pressure value: ≥0.090Mpa
Air pumping efficiency: ≥25L/min
Liquid vessel: 2500ml×2
Adjustment range of negative pressure: -0.013~-0.090Mpa
Noise level: ≤55dB
Input power: 400VA
Mains: AC 220V±10%50Hz
Working mode: Intermittent loading, continuous operation

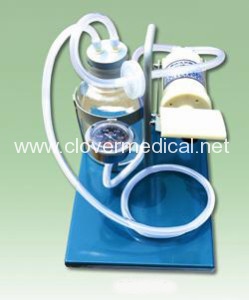

jb ja Product Code:  J·A & JB feed-controlled suction apparatus are employed in induced abortion (within 12 months pregnency), and in most areas where suction of different purposes are required.
Air pumping efficiency: ≥25L/min
Technical specifications:
Negative pressure value: ≥0.090Mpa
Working mode: Intermittent loading, constant operation

23DI electrical suction apparatus is a brand new style roller apparatus for medical use. It may meet most of the adverse pressure requirements in working rooms, wards and other departments in hospitals. It is used for carrying out pus, blood, sputum and other thick liquid in human body. The machine adopts oil-free lubrication vacuum pump preventing the contamination of oil mist, as well as the pump needs no daily maintenance and servicing. The liquid vessel positioned right on the mobile installation makes it effortless to observe the liquid level in the container. Overflow protection apparatus can prevent the liquid from flowing to the pump. Hand-operated switch and footstep-operated switch are connected in parallel to option. The complete machine functions reliably, produces low level of sound. It is long in service life and reliable and safe in use.
Maximum negative Pressure:≥10L/min
Bottle capacity:1000ml
Negative pressure value:≤-0.07MPa
