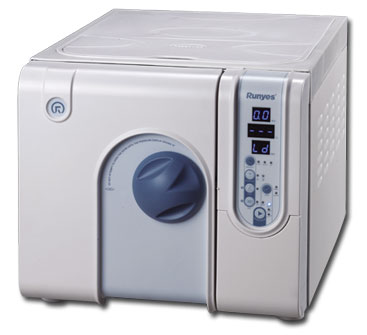

Dental Autoclave CMB-15L

Product Code: : Dental Autoclave CMB-15L
3
Vapor generation and boiler heating are separated
To separate the vapor generation and boiler heating, we adopt steam generator to produce steam, which can humanly control the speed and quantity of steam, thus saving water.
In addition, service life is greatly increased with heating circle, owning to temperature-down of the boiler.
Multipoint control of Vapor generation
With multipoint control, over-pressure is reduced to a great extent, sterilization state becomes much stable, and the time needed to enter sterilization is greatly reduced.
Fuzzy control of the boiler heating and preservation
Adopting the technology of fuzzy control, it is much precise, and the temperature positive and negative deviation can be controlled within 0.5
Automatical record of the time of sterilization beginning &end
The new-type control system will record the time of beginning &end of sterilization automatically
Automatical & manual adjust of the parameters of temperature sensor.
The adjust of parameters is automatical, and manual adjust is also available on your will.
Adjustable date&time mode
The date & time mode can be adjusted on your will, ranging of 100 years.

Product Code
power
Wattage
Capacity
Chamber
Package
Weight

V/Hz
W
L
mm
mm
Gr/Net Kgs
CMB-15L
220/50
1800
15
230*360
660*480*520
52/50
 physical space: 15L
 sterilizing temperature:  121℃,134℃
 Data logger:  Printer optional
 Dry procedure:  vacuum drying
 Display:  LED
 test:  Bowie&Dick,Leak
 sterilizing record:  There is a micro-printer optional,recording the whole process of sterilizing
 Safety Features:  Pressure Release Valve and Computerized diagnosing and alam system
 water supply system :  Reservoirs(3.5L fresh water and 5 liter waste water reservoirs)
 Voltage:  220V±10%
 power: 1800W/10A
 instrument containers:  5 trays
 Chamber size :  230mm*360mm
 Net weihgt :  50Kg
